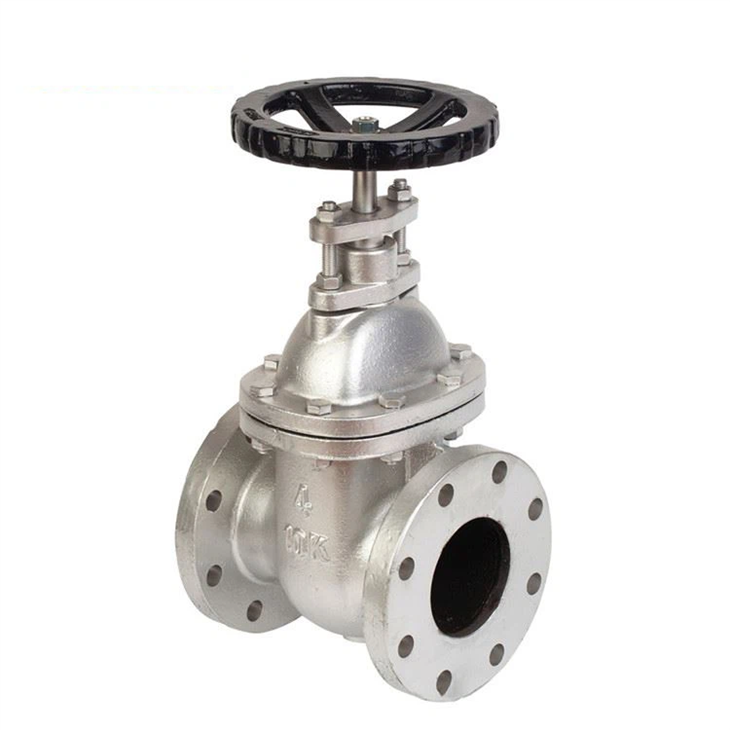

Gate Valve JIS 10K

Name: China Customized Gate Valve JIS 10K Suppliers, Manufacturers - Factory Direct Price - AMETEK
Brand: Ametek
SKU: 140534869

1.Flange End:JIS B 2239/KS B1511
2.Nominal Pressure:10K
3.Suitable Temperature:≤120℃
4.Suitable Medium:Water,Oil,Gas

Send Inquiry

Add To Inquiry

Product Introduction

Description

The Gate Valve JIS 10K is a high-quality valve designed for reliable flow control in various industrial applications. Made from durable materials, it adheres to the Japanese Industrial Standard (JIS) 10K specifications, ensuring excellent performance and safety. The valve features a non-rising stem, bolted bonnet, and flexible wedge, offering smooth operation and tight sealing. Suitable for use in water, oil, and gas pipelines, it is available in a range of sizes to meet different system requirements. The Gate Valve JIS 10K is ideal for environments requiring robust and efficient flow regulation.

Technical Parameters

1.Drawing

Drawing of Gate Valve JIS 10K

2.COMPONENT

Part Name	Material
Body	Cast Iron
Bonnet	Cast Iron
Stem	SS420
Seal Ring	Brass/Stainless Steel

3.DIMENSION

DN	L±1.5	b	ZΦd	Φ	Φ1	W	H
40	180	20	4Φ19	Φ105	Φ140	Φ190	248.5
50	180	20	4Φ19	Φ120	Φ155	Φ190	261.5
65	190	22	4Φ19	Φ140	Φ175	Φ190	286
80	200	22	8Φ19	Φ150	Φ185	Φ210	325
100	230	24	8Φ19	Φ175	Φ210	Φ240	381.5
125	250	24	8Φ23	Φ210	Φ250	Φ260	417
150	270	26	8Φ23	Φ240	Φ280	Φ270	465.7
200	290	26	12Φ23	Φ290	Φ330	Φ300	563.5
250	330	30	12Φ25	Φ335	Φ400	Φ350	665
300	350	32	16Φ25	Φ400	Φ445	Φ390	780

Product advantage

High-Quality Materials: JIS 10K gate valves are typically made from high-quality materials such as stainless steel, cast steel, or bronze. These materials provide excellent corrosion resistance and mechanical strength, ensuring long-term use even in harsh environments.

Reliable Sealing Performance: The gate valve's disc and seat sealing surfaces use hard materials or a combination of hard and soft materials, ensuring reliable sealing performance under both high and low pressure, thus preventing media leakage.

Low Fluid Resistance: The design of gate valves allows the disc to fully retract from the flow path when fully open, creating a straight-through flow path. This results in minimal fluid resistance, which helps in energy savings and improving system efficiency.

Wide Range of Applications: JIS 10K gate valves are suitable for various fluids, including water, steam, oil, and gas. They are widely used in industries such as petroleum, chemical, power, shipbuilding, and pharmaceuticals, demonstrating strong versatility.

Easy Operation and Maintenance: Gate valves have a simple structure and are easy to operate, with options for manual, pneumatic, or electric actuation. Maintenance is also straightforward, with easy access for routine inspection and parts replacement, saving time and costs.

Delivery

For stock products, we will send goods to you within 1-2 days after receiving the payment.If we don't have in stock, it will take around 15~25 days after receiving deposit.

product-1-1

About Us

Ametek's Factory

Xiamen Ametek Technology CO.,LTD was established in 2010, located in Quanzhou City, develops, designs, and manufactures market-leading smart products for repairing and connecting different types of pipes for both potable water and sewage. We mainly supply ductile iron pipe fittings & ductile iron pipe joints & valves and pipe repair clamps and iron castings. The production capacity is about 10000 tons per year, and It's still developing every year. In 2019, Ametek Corporation moved its trading team to 3C, Liansheng Building, No.28 Huli Avenue, Xiamen, China to sustain fast-growing business activities. For the last 10 years, we've been deeply committed to providing the most reliable connections for drinking water supply around the world.
