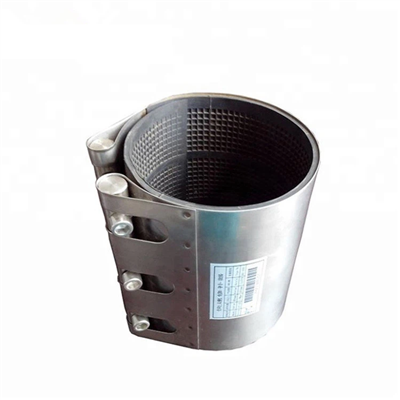

Mini Type Pipe Repair Clamp
2.Gasket: EPDM or NBR
3.Bolts & Nuts: Stainless Steel 304
Description
Mini type pipe repair clamp is applied on quick repairing of he small leakage on oil/gas/water supply or drain pipe.It can be used under pressure,It has the advantages of handiness,safe,easy to use.
Drawing
Technical Parameters
| Diameter Range | Working Pressure | Length | Bolts | ||
| Min-Max(mm) | PN(bar) | W(mm) | Specifications M | Length | Torque |
| 21-25 | 16 | 75/150/300 | 10 | 90 | 80 |
| 26-30 | 16 | 75/150/300 | 10 | 90 | 80 |
| 29-33 | 16 | 75/150/300 | 10 | 90 | 80 |
| 33-37 | 16 | 75/150/300 | 10 | 90 | 80 |
| 42-45 | 16 | 75/150/300 | 10 | 90 | 80 |
| 44-48 | 16 | 75/150/300 | 10 | 90 | 80 |
| 48-51 | 16 | 75/150/300 | 10 | 90 | 80 |
| 50-54 | 16 | 75/150/300 | 10 | 90 | 80 |
| 55-60 | 16 | 75/150/300 | 10 | 90 | 80 |
| 60-64 | 16 | 75/150/300 | 10 | 90 | 80 |
| 65-69 | 16 | 75/150/300 | 10 | 90 | 80 |
Knacks in Installation of Repair Clamp
1.Clean the pipe surface,making it as clean and free of soil,mud and scale as possible in order to enable the clamp gasket to sucessfully seal against the pipe surface.
2.Hold the repair clamp against the pipe and draw left and right clamp end locator marks on the pipe.
3.Use water or suds to lubricate the pipe in order to make the sealing rigng easier to install.
4.Cleaning and lubricating the bolt can lower the friction then make it easier for tightening the bolt and nut.
5.Keep a stable water pressure in the pipe to prevent sundries.
6.When the pipe is lubricated well, it will be easier to wrap the clamp around the pipe.
7.Rise up the water level over the pipe can effectively control the water spray which will help a quick installation.
8.Tighten the middle nut can help to control the water spray, then sequentially tighten the other bolts.
9.Drill a hole on the both end of the pipe can help to reduce the pressure and prevent enlarging the leak point.
FAQ
Q: Can I get free sample?
A: Yes, we can offer free sample,but you need to bear the DHL charge, we will refund customer DHL charge after we do business.
Q: What’s your terms of payment?
A: For payment ≤ 1000 USD, 100% in advance. For payment ≥ 1000 USD, 30% in advance, balance payment before loading.
Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
Q: How is your price?
A: We always wish to provide our best products and services with reasonable price to our customers. Every day we strive for better services and improved quality of products, in order to bring our customers core value of “Prestige - Quality - Reasonable Price”
