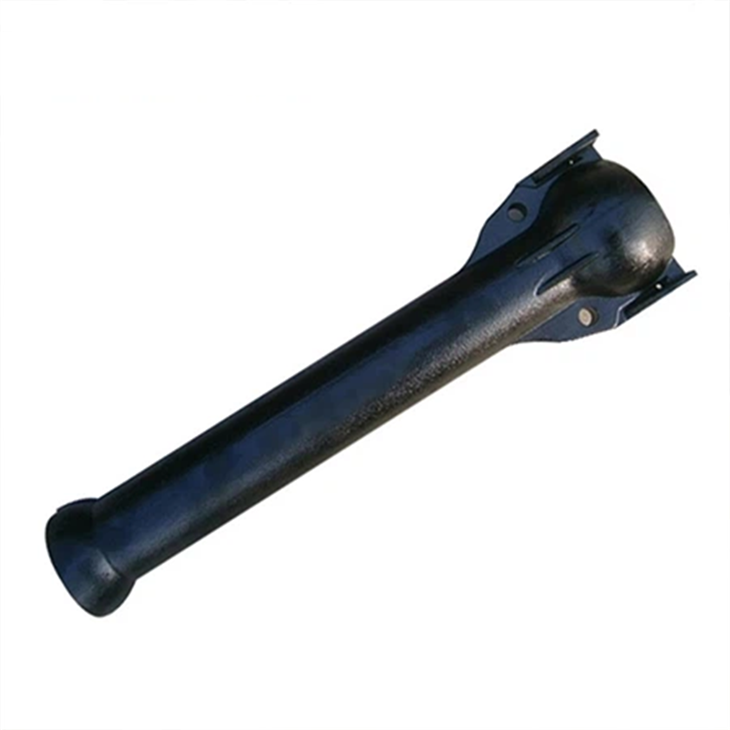

Articulated Pipe Cable Protection
2. Surface Treatment: Black Bituminous Painted
3. Package: Iron Pallet or Plywood Case
4. Supply Ability:500 Tons Per Month
DESCRIPTION
The articulated cable protection tube has good wear resistance and strong adhesion, and is not easy to be damaged in the process of protecting the submarine cable or optical cable. Its special joint spherical hinge structure increases the anti-vibration and impact resistance, and can effectively protect the submarine cables and optical cables from vibration or impact damage.
TECHNICAL PARAMETERS

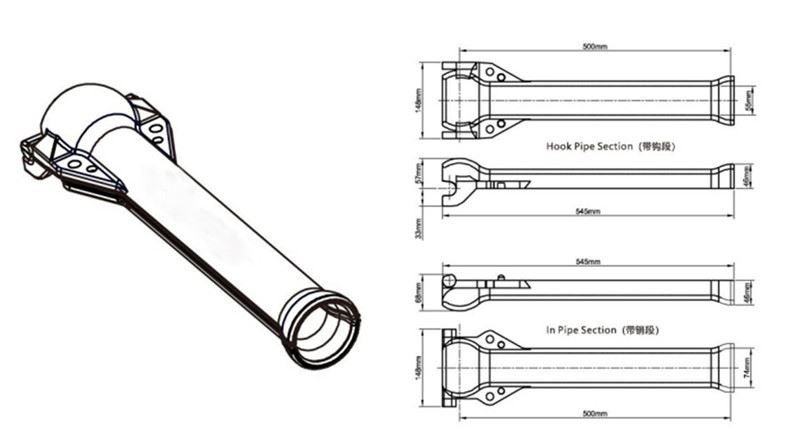

1.Drawing
2.Specification
Model No. | Inner Diameter （mm） | Thickness(mm) | Outer Diameter（mm） | Effective Length(mm) |
050×9 | 50 | 9 | 68 | 500 |
060×9 | 60 | 9 | 78 | 500 |
070×10 | 70 | 10 | 90 | 500 |
077×9 | 77 | 9 | 95 | 500 |
090×10 | 90 | 10 | 110 | 500 |
100×10 | 100 | 10 | 120 | 500 |
120×12 | 120 | 12 | 144 | 500 |
130×13 | 130 | 13 | 156 | 500 |
140×14 | 140 | 14 | 168 | 500 |
150×12 | 150 | 12 | 174 | 500 |
160×12 | 160 | 12 | 184 | 500 |
180×12 | 180 | 12 | 204 | 500 |
200×12 | 200 | 12 | 224 | 500 |
250×12 | 250 | 12 | 274 | 500 |
280×12 | 280 | 12 | 304 | 500 |
300×12 | 300 | 12 | 324 | 500 |
Various sizes can be customized according to the design requirements, the inner diameter specification range is 40mm-500mm, and the thickness range is 9mm-40mm | ||||
3.Physical Character
Item | Unit | Reference Standard index |
National Standard | GB | GB/T1348-2009 |
Inner Diameter | mm | 40-500 |
Thickness | mm | 9-20 |
Bending Radius | m | 3.0-8.0 |
Brinell hardness | HBW | 160-210 |
Tensile Strength | MPa | 450(min) |
Elongation | A/％ | 10(min) |
Yield Strength | Mpa | 310(min) |
4.Casing Connection
FEATURES
1. Strong abrasion resistance and adhesion
The WQT articulated cable protection pipe has high material density and strong adhesion to the seabed. The spherical hinge self-locking structure makes the protection tube and the protected submarine cable or optical cable firmly adhere to the beach, seabed, rock, and gravel, and is not easy to be affected by the submarine ocean current or The tide reciprocally pushes the friction back and forth and is injured.
2. Good ductility and impact resistance.
The joint spherical joint structure of WQT articulated cable protection pipe increases seismic and impact resistance, and can effectively protect the submarine cable from external impact and erosion. When an earthquake occurs on the seabed or the seabed changes, due to the joint spherical joint structure of the protective tube The rotation buffer absorbs the energy of vibration or impact, and can effectively protect submarine cables and optical cables from damage by vibration or impact.

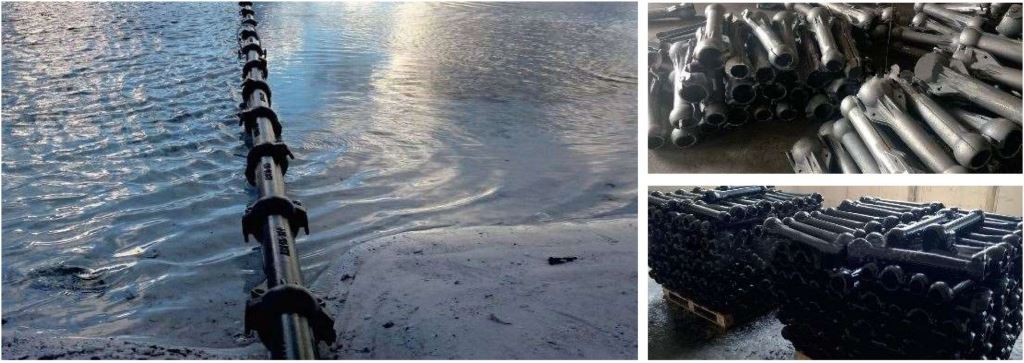

INSTALLATION
FAQ
Q: Do you have a export licence?
A: Yes, our products have been exported to over 30 countries.
Q: Can I have my own logo on the product?
A: Yes, you can send us your drawing and we can make your logo,but it requires certain minimum order quantity
Q: Can you arrange shipment for customer?
A: Yes, we are experienced in shipping, we work with the most reliable shipping companies in the world, such as Maersk, MSC, OOCL, and etc.
Q: Do you offer certificate of origin for customer to reduce customs duty?
A: Yes, our company is registered in China Council for the Promotion of International Trade, we not only can offer certificate of origin,we can also provide Generalized System of Preference Certificate of Origin for our customer to reduce customs duty.
Q: What's your price term?
A: We can do FOB, CIF, CFR, EXW factory or door to door to your warehouse, you can choose the most convenient way for you
