Flange Adaptor for PE Pipe
2. Material of Gasket: EPDM/NBR
3. Main Material: Ductile Iron
4. Service: OEM/ODM
Description
Ametek HDPE restraint flange adaptor is designed as a simple, high performance end load resistant mechanism that grips and seals onto HDPE pipes to prevent the pipe pull off from the pipe system. It's suitable for use with water, drainage, sewage... pipe systems.
Technical Parameters

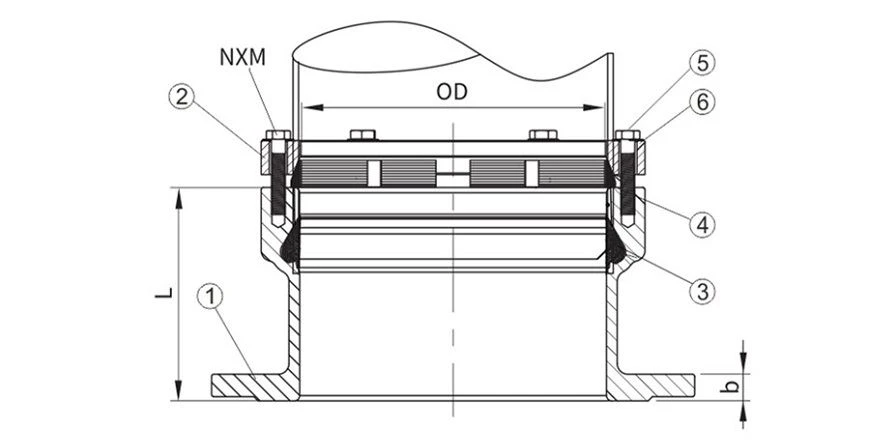

1. Drawing
2. Material Specification
Item No. | Item Name | Material |
1 | Body | Ductile Iron |
2 | End Ring | Ductile Iron |
3 | Gasket | Rubber |
4 | Grip Ring | Brass |
5 | Bolt | Galvanized Steel |
6 | Washer | Galvanized Steel |
3. Dimensions(mm)
Inch | DN | PE-OD | L | Bolt |
1-1/2" | 40 | 50 | 63 | 2*M12 |
2" | 50 | 63 | 63 | 2*M12 |
2-1/2" | 65 | 75 | 63 | 4*M12 |
3" | 75 | 90 | 63 | 4*M12 |
4" | 100 | 110 | 63 | 4*M12 |
5" | 125 | 125 | 63 | 4*M12 |
6" | 150 | 160 | 63 | 4*M12 |
7" | 175 | 180 | 63 | 4*M12 |
8" | 200 | 200 | 88 | 4*M14 |
8" | 200 | 225 | 88 | 4*M14 |
10" | 250 | 250 | 88 | 6*M16 |
10" | 250 | 280 | 88 | 6*M16 |
12" | 300 | 315 | 88 | 6*M16 |
The above drawings and parameters are for reference only, please consult us for exact data.
Features
1. Unique Gasket Design
The restrained coupling & flange adaptor are supplied as standard with EPDM gasket for water applications to EN681, also available with NBR gasket to EN682 for natural gas, petroleum products, drainage, sewage... pipe systems.
2. Excellent Corrosion & Damage Resistance
Coated with RAL5017 fusion bond epoxy powder, which is anti-corrosive. The nuts and bolts are Dacromet, offering long term protection against corrosion, impact and abrasion to ensure continued reliable performance.
3. Unique Load Bearing Brass Teeth
By tightening the bolts, the end ring and load bearing brass teeth will press the gasket inside, until the end ring makes contact with the sleeve. From then on the brass teeth starts to reduce its diameter, and the sharp profile of the brass teeth starts to cut into the PE pipe. After the bolts are tightened, the coupling and adaptor is ready for use.
Production Equipment
Ametek Corporation owns Taiwan self-made hard sand automatic recycling and regeneration line FURAN mixer, Japan TOKYU AMF-II-05Z automatic molding line, resin sand production line, lost foam casting production line, epoxy powder coating spray line, semi-automated assembly workshop and finished product workshop. We use environmentally conscious production methods to manufacture long-lasting pipeline networks.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer, our company was founded in 2010.
Q: Do you offer certificate of origin for customer to reduce customs duty?
A: Yes, our company is registered in China Council for the Promotion of International Trade, we not only can offer certificate of origin, we can also provide Generalized System of Preference Certificate of Origin for our customer to reduce customs duty.
Q: What is the normal lead time of your products?
A: For stock products, we will send goods to you within 1-2 days after receiving the payment. If we do not have them in stock, It will take around 15-25 days after receiving deposit.
Q: Could you help us design the products?
A: Yes, we have employed knowledgeable and experienced engineers and designers who are able to design products complied with international standards and as per customer's requirement.
Q: What's your price term?
A: We can do FOB, CIF, CFR, EXW factory or door to door to your warehouse, you can choose the most convenient way for you
