Dedicated Flange Adaptor
Description

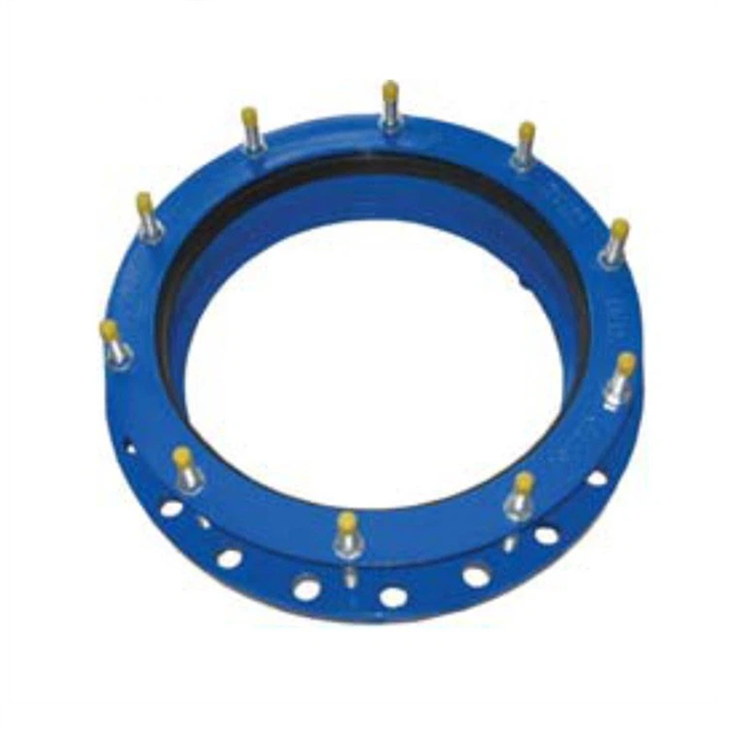

Dedicated Flange adaptor for steel pipe joins plain end steel pipe to flange valves, pumps, fittings and pipe. It's with corrosion protection of inside and outside FBE 300um, Size Range is from DN40~DN2000. Package is polywood case with bubble film for each item or at customers' request.
Technical Parameters
1-Drawing
2-Material Specification
Item No. | Item Name | Material | Specification |
1 | Body | Ductile Iron | GJS500-7 |
2 | End Ring | Ductile Iron | GJS500-7 |
3 | Gasket | Rubber | EPDM |
4 | Bolt | Galvanized Steel | ISO898-1:1999 |
5 | Washer | Galvanized Steel | |
6 | Nut | Galvanized Steel | ISO898-2:1992 |
7 | Cap | Plastic |
3-Dimensions(mm)
Inch | DN | OD | L | Bolt No. | Bolt L |
1-1/2" | 40 | 56 | 70 | 4 | 110*M12 |
2" | 50 | 66 | 70 | 4 | 110*M12 |
2-1/2" | 65 | 82 | 70 | 4 | 110*M12 |
3" | 80 | 98 | 73 | 4 | 110*M12 |
4" | 100 | 118 | 76 | 4 | 110*M12 |
5" | 125 | 144 | 76 | 4 | 120*M12 |
6" | 150 | 170 | 76 | 4 | 120*M12 |
8" | 200 | 222 | 76 | 6 | 130*M12 |
10" | 250 | 274 | 90 | 6 | 130*M12 |
12" | 300 | 326 | 90 | 6 | 130*M12 |
14" | 350 | 378 | 108 | 8 | 150*M16 |
16" | 400 | 429 | 108 | 8 | 150*M16 |
18" | 450 | 480 | 108 | 10 | 160*M16 |
20" | 500 | 532 | 114 | 10 | 160*M16 |
24" | 600 | 635 | 114 | 10 | 160*M16 |
28" | 700 | 738 | 114 | 12 | 180*M16 |
32" | 800 | 842 | 114 | 12 | 180*M16 |
36" | 900 | 945 | 114 | 14 | 180*M16 |
40" | 1000 | 1048 | 127 | 14 | 180*M20 |
44" | 1100 | 1152 | 127 | 16 | 200*M20 |
48" | 1200 | 1255 | 127 | 16 | 200*M20 |
56" | 1400 | 1462 | 190 | 18 | 220*M20 |
60" | 1500 | 1565 | 190 | 18 | 240*M20 |
64" | 1600 | 1668 | 190 | 20 | 240*M20 |
72" | 1800 | 1875 | 190 | 22 | 240*M20 |
80" | 2000 | 2082 | 190 | 24 | 250*M20 |
The above drawings and parameters are for reference only, please consult us for exact data.
Features
1-PN10 and PN16 working pressure.
2-Ductile Iron GGG50 with FBE coated
3-With galvanized steel bolts, nuts.
4-EPDM or NBR rubber seals.
5-Suitable for steel pipe.
