DI Flange Adapter
Versatile Compatibility: Compatible with diverse pipe materials for flexibility.
Description
The DI Flange Adapter serves as a crucial component in fluid conveyance systems, facilitating the seamless connection between ductile iron pipes and flanged fittings. Crafted from durable materials, this adapter ensures a robust and leak-resistant junction, enhancing the overall integrity of the pipeline. Its precision-engineered design allows for easy installation and maintenance, providing a reliable solution for diverse industrial applications. With corrosion-resistant features, the DI Flange Adapter ensures long-lasting performance, making it an essential choice for efficient and dependable fluid transportation systems.
Technical Parameters
1.Drawing
2.Dimension(mm)
| Nominal Size | Pipe O.D | Working Pressure | Dimensions | Bolt/Nut Size | |||
| mm/in | mm/in | PSI/Mpa | L(mm/in) | X(mm/in) | Y(mm/in) | Z(mm/in) | No.-Size(mm) |
| 50 | 60.3 | 225PSI 1.6MPa/300PSI 2.07MPa |
63.5 | 125 | 165 | 15 | 4-φ18 |
| 2 | 2.374 | 2.5 | 4.92 | 6.5 | 0.59 | ||
| 65 | 76.1 | 63.5 | 145 | 185 | 15 | 4-φ18 | |
| 21 | 2.996 | 2.5 | 5.71 | 7.28 | 0.59 | ||
| 80 | 88.9 | 63.5 | 160 | 200 | 15 | 8-φ18 | |
| 3 | 3.5 | 2.5 | 6.3 | 7.87 | 0.59 | ||
| 100 | 108 | 68.5 | 180 | 220 | 16 | 8-φ18 | |
| 4 | 4.252 | 2.697 | 7.09 | 8.66 | 0.63 | ||
| 100 | 114.3 | 68.5 | 180 | 220 | 16 | 8-φ18 | |
| 4 | 4.5 | 2.697 | 7.09 | 8.66 | 0.63 | ||
| 125 | 133 | 68.5 | 210 | 250 | 16 | 8-o18 | |
| 5 | 5.236 | 2.697 | 9.84 | 9.84 | 0.63 | ||
| 100 | 139.7 | 68.5 | 210 | 250 | 16 | 8-φ18 | |
| 4 | 5.5 | 2.697 | 9.84 | 9.84 | 0.63 | ||
| 150 | 159.0 | 68.5 | 240 | 285 | 17 | 8-φ22 | |
| 6 | 6.260 | 2.697 | 9.45 | 11.22 | 0.67 | ||
| 150 | 165.1 | 68.5 | 240 | 285 | 17 | 8-φ22 | |
| 6 | 6.500 | 2.697 | 9.45 | 11.22 | 0.67 | ||
| 150 | 216.3 | 78 | 295 | 340 | 18 | 12-φ22 | |
| 6 | 8.516 | 3.071 | 11.61 | 13.39 | 0.71 | ||
| 200 | 219.1 | 78 | 295 | 340 | 18 | 12-φ22 | |
| 8 | 8.626 | 3.071 | 11.61 | 13.39 | 0.71 | ||
| 250 | 273.0 | 83 | 355 | 405 | 19 | 12-φ26 | |
| 10 | 10.748 | 3.268 | 13.98 | 15.94 | 0.75 | ||
| 300 | 323.9 | 88 | 410 | 460 | 21 | 12-φ26 | |
| 12 | 12.752 | 3.465 | 16.14 | 18.11 | 0.83 | ||
Product advantage
Versatile Compatibility: Our DI Flange Adapter is designed to seamlessly connect ductile iron pipes with a variety of flanged fittings, offering a versatile solution compatible with diverse piping systems.
Reliable Sealing: Featuring a precision-engineered design, the adapter ensures a tight and secure seal, minimizing the risk of leaks and enhancing the overall integrity of fluid conveyance systems.
Easy Installation and Maintenance: With a user-friendly design, our DI Flange Adapter simplifies both installation and maintenance processes, reducing downtime and associated costs for industrial operations.
Durable Construction: Crafted from high-quality materials, the adapter boasts exceptional durability and corrosion resistance, ensuring a long service life and reliable performance even in challenging environments.
Wide Industrial Applicability: Whether in water treatment plants, municipal infrastructure, or industrial facilities, our DI Flange Adapter proves its versatility, making it a dependable choice for a broad range of applications where reliable pipe connections are essential.
FAQ
Q: What is a DI Flange Adapter, and what is its primary purpose?
A: A DI Flange Adapter is a component designed to connect ductile iron pipes with flanged fittings, creating a secure and leak-resistant junction. Its primary purpose is to facilitate the seamless integration of pipes within fluid conveyance systems.
Q: Are these Adapters compatible with other pipe materials besides ductile iron?
A: Generally, DI Flange Adapters are specifically designed for use with ductile iron pipes. While compatibility with other materials may vary, it's advisable to check product specifications or consult with the manufacturer for guidance on specific applications.
Q: How do I install a DI Flange Adapter, and is any special tooling required?
A: Installation typically involves aligning the adapter with the flanged fitting and tightening the bolts. No special tools are usually required, but it's essential to follow the manufacturer's installation guidelines provided with the product to ensure a proper and secure fit.
Q:Can It withstand corrosive environments?
A: Yes, they are often crafted from materials with corrosion-resistant properties, ensuring durability in various environments. However, it's crucial to consider the specific application and fluid characteristics, and consult the product specifications for compatibility with corrosive substances.
Q: Are these Adapters reusable, or should they be replaced after a certain period?
A: While DI Flange Adapters are durable, their reusability depends on factors such as the condition of the components and the severity of operating conditions. Regular inspections during maintenance can help determine whether an adapter should be reused or replaced to maintain the integrity of the piping system.
Hot Tags: di flange adapter, China, manufacturers, suppliers, factory, customized, price
Previous

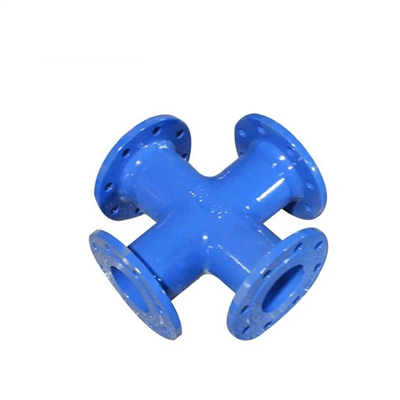

Cross Pipe JointNext
