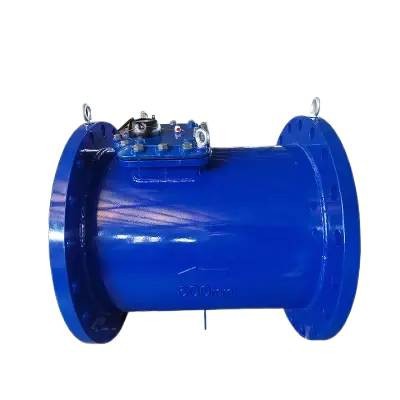

Lxlc Water Meter
Features
Removable element structure, easy installation and maintenance. register for universal use within this range detachable without removing the meter from the pipeline.
Dry-dial, Magnetic drive sensitive action, small pressure loss.
Vacuum sealed register ensures the dial keep freee from condensation and Keep the reading clear in a long term service.
Selected high quality materials for steady and reliable characteristic.
Technical Parameters
1.Drawing

2.DIMENSIONS
| Type | Size | L | H | Connecting Flange | |||
| Length | Height | ΦD1 Outside Diameter |
ΦD2 Bolt Circle Diameter |
Cinnecting Bolts (n-M) |
WorkingPressure (MPa) |
||
| mm | |||||||
| LXLC-350 | 350 | 500 | 590 | 505 | 460 | 16-M20 | 1 |
| 520 | 470 | 16-M24 | 1.6 | ||||
| 555 | 490 | 16-M30 | 2.5 | ||||
| LXLC-400 | 400 | 600 | 660 | 565 | 515 | 16-M24 | 1 |
| 580 | 525 | 16-M27 | 1.6 | ||||
| 620 | 550 | 16-M33 | 2.5 | ||||
| LXLC-450 | 450 | 600 | 700 | 615 | 565 | 20-M24 | 1 |
| 640 | 585 | 20-M27 | 1.6 | ||||
| 670 | 600 | 20-M33 | 2.5 | ||||
| LXLC-500 | 500 | 800 | 760 | 670 | 620 | 20-M24 | 1 |
| 715 | 650 | 20-M30 | 1.6 | ||||
| 730 | 660 | 20-M33 | 2.5 | ||||
| LXLC-600 | 600 | 500 Or 800 |
800 | 780 | 725 | 20-M27 | 1 |
| 840 | 770 | 20-M33 | 1.6 | ||||
| 845 | 770 | 20-M36 | 2.5 | ||||
3.Main Technical Specification
| Type | Size (mm) |
Class | qs Overload Flow |
qp Permanent Flow |
qt Transitional Flow |
qmin Min Flow |
Min Reading |
Max Reading |
| m3/h | m³ | |||||||
| LXLC | 350 | A | 1600 | 800 | 240 | 64 | 0.02 | 999999999 |
| -350 | B | 160 | 24 | |||||
| LXLC-400 | 400 | A | 2000 | 1000 | 300 | 80 | 0.02 | 999999999 |
| B | 200 | 30 | ||||||
| LXLC-450 | 450 | A | 2000 | 1000 | 300 | 80 | 0.02 | 999999999 |
| B | 200 | 30 | ||||||
| LXLC-500 | 500 | A | 3000 | 1500 | 450 | 120 | 0.02 | 999999999 |
| B | 300 | 45 | ||||||
| LXLC-600 | 600 | A | 6000 | 3000 | 900 | 240 | 0.02 | 999999999 |
| B | 600 | 90 | ||||||
Working Condition
Water temperature:0.1℃~40℃ (0.1℃~90℃ for hot water meter).
Water pressure: ≤1MPa (1.6MPa for special requirement).
Maximum Permissible Error
In the lower zone from qmin inclusive up to but excluding qt is ±5%.
In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
