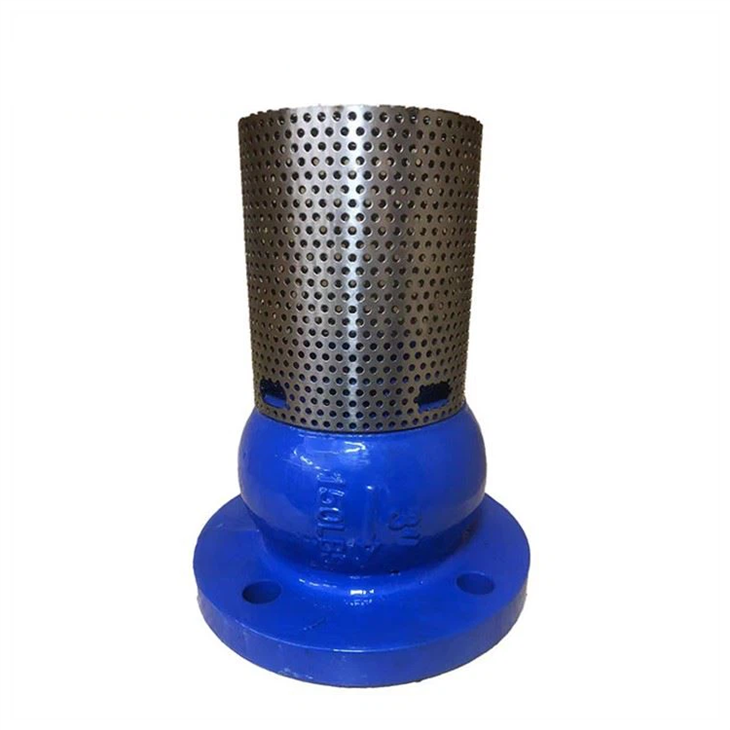

Flanged Foot Valve
2.Bonnet:Cast iron or ductile iron
3.Spring:Stainless Steel or Iron
4.O-ring: EPDM or NBR
Description
Foot valve is used to prevent backflow, retain water level in the pipeline from the bottom of the tank to the pump, It's also working as a filter prevent rock and gravel entering the pump, Closed by spring and rubber disc, it can be fully sealed on all pressure and without gaskets, Hyflo foot valve，vertical check valve foot valve. FFV-RIRE protection
Drawing
Body | Cast iron or Ductile iron |
Bonnet | Cast iron or Ductile iron |
Spring | Stainless steel |
Guiding stem | Stainless steel Or iron |
O-ring | EPDM or NBR |
Disc | Ductile iron |
Nut | Stainless steel |
Technical Parameters
size | L | D | N-D |
mm | mm | mm | mm |
50 | 203 | 152 | 4--19 |
80 | 241 | 191 | 4--19 |
100 | 292 | 229 | 8--19 |
150 | 355 | 279 | 8--22 |
200 | 495 | 343 | 8--22 |
250 | 622 | 406 | 12--25 |
300 | 698 | 483 | 12--25 |
Certificates
CE,ISO9001, WARS for EPDM, WARS for Epoxy Powder Coating,ISO9001,ISO14001, OHSAS18001, etc are all available in Ametek upon clients' requests.
Packing and Delivery
Packing
Bubble film packing to protect EPOXY coating, then use standard wooden case or pallet to load goods.
Delivery
For stock products, we will send goods to you within 1-2 days after receiving the payment.If we don’t have in stock, it will take around 25~35 days after receiving deposit.
FAQ
Q: When can I get the quotation?
A: Quotation will be offered to the customer within 12 hours after we get the inquiry. If you need the quotation urgently, please call us or tell us in your email, we will offer the quotation as soon as possible.
Q: Do you offer certificate of origin for customer to reduce customs duty?
A: Yes, our company is registered in China Council for the Promotion of International Trade, we not only can offer certificate of origin,we can also provide Generalized System of Preference Certificate of Origin for our customer to reduce customs duty.
Q: Is your product tested before shipping?
A: Yes, we will do pressure test on site for every item before packing.
Q: Can we visit your factory?
A: Yes,we welcome you to visit our factory anytime,we will pick you up from airport or train station to our factory.
Q: Can I have my own logo on the product?
A: Yes, you can send us your drawing and we can make your logo,but it requires certain minimum order quantity
Q: Can I get free sample?
A: Yes, we can offer free sample,but you need to bear the DHL charge, we will refund customer DHL charge after we do business.
