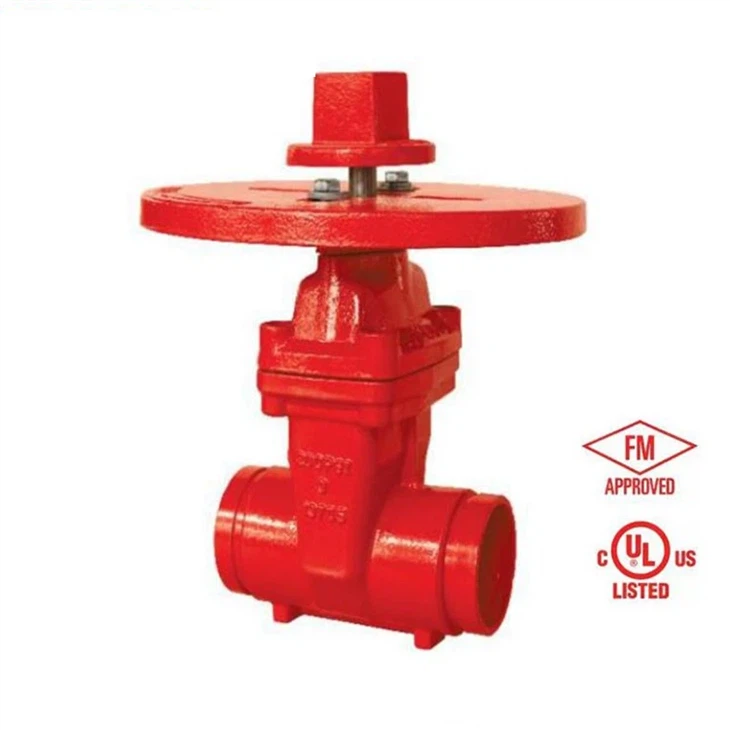

200PSI NRS Type Grooved End Gate Valve
Description
200PSI NRS Type Grooved End Gate Valve is designed according to AWWA C515. Flange standards are ANSI B16.1 Class 125 or according to the customer's requirements.Nominal Pressure is 200PSI.Both inside and outside of the body need Epoxy Resin Coating. could also be operated by the handwheel
Drawing
| 18 | Plug | 2 | Cast Bronze | ASTM B62 |
| 17 | Countersunk Head Bolts | n | Steel | |
| 16 | Platen | 1 | DI | ASTM A536 65-45-12 |
| 15 | Coupling Flange | 2 | DI | ASTM A536 65-45-12 |
| 14 | Plain Washer | 2 | Steel | |
| 13 | Blind Nut | 2 | Steel | |
| 12 | Bolt Stud | 1 | Steel | |
| 11 | Bolt | 1 | Steel | |
| 10 | Minipad | 1 | Steel | |
| 09 | Scotch | 1 | DI | ASTM A536 65-45-12 |
| 08 | O-Ring | 2 | EPDM | ASTM D2000 EPDM |
| 07 | Retainer Ring | 1 | C2800 | ASTM B135 |
| 06 | Cap | 1 | DI | ASTM A536 65-45-12 |
| 05 | Stem | 1 | S.S.304 | ASTM A276 |
| 04 | Gasket | 1 | EPDM | ASTM D2000 EPDM |
| 03 | Nut | 1 | C95400 | ASTM B148 |
| 02 | Disc | 1 | DI+EPDM | ASTM A536 65-45-12 +EPDM |
| 01 | Body | 1 | DI | ASTM A536 65-45-12 |
| No. | Name | Qty. | Material | Remark |
SIZE CHART
| SIZE | 2-1/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| L | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 |
| H | 255 | 289 | 323 | 386 | 420 | 520 | 628 | 725 |
| ΦD | 76.1 | 88.9 | 114.3 | 141.3 | 168.3 | 219.1 | 273 | 323.9 |
| ΦE | 72.3 | 84.9 | 110.1 | 137 | 163.9 | 214.4 | 268.3 | 318.3 |
| F | 15.9 | 15.9 | 15.9 | 15.9 | 19 | 19 | 19 | 19 |
| G | 7.9 | 7.9 | 9.5 | 9.5 | 9.5 | 11.1 | 12.7 | 12.7 |
| ΦA | 305 | 305 | 305 | 305 | 305 | 305 | 305 | 305 |
Features
Type:200PSI NRS Type Grooved End Gate Valve
Norminal pressure:200psi
Flange Standard: ANSI B16.1 Class 125 or according to the customer's requirement
Face to face standard:ASME B16.10
Maximum working temperature:80℃
Maximum working pressure:200psi（maximum testing pressure:600psi）
Coating details:epoxy coated interior and exterior by electrostatic spray or coating upon request
Production Equipment
Ametek Corporation owns Taiwan self-made hard sand automatic recyling and regeneration line FURAN mixer, Japan TOKYU AMF-II-05Z automatic molding line, resin sand production line, lost foam casting production line, epoxy powder coating spray line, semi-automated assembly workshop and finished product workshop.We use environmentally conscious production methods to manufacture long-lasting pipeline networks.
FAQ
Q: Can I get free sample?
A: Yes, we can offer free sample,but you need to bear the DHL charge, we will refund customer DHL charge after we do business.
Q: Do you offer certificate of origin for customer to reduce customs duty?
A: Yes, our company is registered in China Council for the Promotion of International Trade, we not only can offer certificate of origin,we can also provide Generalized System of Preference Certificate of Origin for our customer to reduce customs duty.
Q:Is it a finished product or can be customized?
A:We customize the professional valves you need according to your technical requirements, drawings, parameters, etc.
Q:What is your price term
A:Ex-factory ,FOB,T/T
