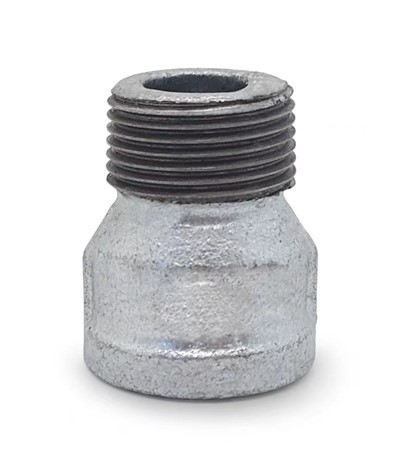

Bushing
The main function of these fittings is to connect pipes or to change the direction of fluid flow.
Description
Bushing pipe fittings are robust components designed to connect pipes of different sizes. Crafted from durable malleable steel, these fittings offer exceptional strength and reliability in various plumbing or industrial applications. Their threaded design allows for easy installation, providing a secure and leak-resistant connection between pipes or fittings. With their versatility and resilience, malleable steel bushing pipe fittings serve as essential components in ensuring efficient fluid conveyance within piping systems.
Technical Parameters
1.Drawing
2.DIMENSIONS(mm)
| Size | L | S | H | Unit Weight | Packing | ||
| Black | Galv. | Carton | |||||
| BSPT | DN | mm | mm | mm | g | g | Pcs/ctn |
| 1/4"×1/8" | 8×6 | 18.5 | 16.8 | 6 | 14.7 | 15 | 1800 |
| 3/8"×1/8" | 10×6 | 18 | 20 | 6 | 22.54 | 23 | 1500 |
| 3/8"×1/4" | 10×8 | 18.5 | 18.4 | 6 | 18.62 | 19 | 1800 |
| 3/4"×3/8" | 15×8 | 22.5 | 22 | 6 | 61.74 | 63 | 500 |
| 3/4"×1/4" | 15×10 | 22.5 | 22 | 6 | 66.64 | 68 | 600 |
| 1/2"×3/8" | 20×8 | 24.5 | 29.6 | 6 | 32.34 | 33 | 960 |
| 1/2"×1/4" | 20×10 | 24.5 | 29.6 | 6 | 38.22 | 39 | 900 |
| 3/4"×1/2" | 20×15 | 24.5 | 29.6 | 6 | 50.96 | 52 | 600 |
| 1"×1/4" | 25×8 | 28 | 37.4 | 6.5 | 105.84 | 108 | 300 |
| 1"×3/8" | 25×10 | 28 | 37.4 | 5 | 11.72 | 114 | 300 |
| 1"×1/2" | 25×15 | 28 | 37.4 | 6.5 | 97.02 | 99 | 300 |
| 1"×3/4" | 25×20 | 28 | 37.4 | 6.5 | 81.34 | 83 | 300 |
| 1-1/4"×1/2" | 32×15 | 30 | 45.6 | 7 | 167.58 | 171 | 200 |
| 1-1/4"×3/4" | 32×20 | 30 | 45.6 | 7 | 151.9 | 155 | 200 |
| 1-1/4"×1" | 32×25 | 30 | 45.6 | 7 | 126.42 | 129 | 200 |
| 1-1/2"×1/2" | 40×15 | 30 | 50 | 7.5 | 197.96 | 202 | 160 |
| 1-1/2"×3/4" | 40×20 | 30 | 50 | 7.5 | 207.76 | 212 | 160 |
| 1-1/2"×1" | 40×25 | 30 | 50 | 7.5 | 182.28 | 186 | 160 |
| 1-1/2"×1-1/4" | 40×32 | 30 | 50 | 7.5 | 123.48 | 126 | 160 |
| 2"×1/2" | 50×15 | 33 | 64.1 | 8.5 | 289.1 | 295 | 96 |
| 2"×3/4" | 50×20 | 33 | 64.1 | 8.5 | 298.9 | 305 | 96 |
| 2"× 1" | 50×25 | 33 | 64.1 | 8.5 | 342.02 | 349 | 96 |
| 2"×1-1/4" | 50×32 | 33 | 64.1 | 8.5 | 302.82 | 309 | 96 |
| 2"×1-1/2" | 50×40 | 33 | 64.1 | 8.5 | 255.78 | 261 | 96 |
| 2-1/2"×1/2" | 65×15 | 39 | 79.6 | 9 | 441 | 450 | 68 |
| 2-1/2"×3/4" | 65×20 | 39 | 79.6 | 9 | 456.68 | 466 | 68 |
| 2-1/2"×1" | 65×25 | 39 | 79.6 | 9 | 448.84 | 458 | 68 |
| 2-1/2"×1-1/4" | 65×32 | 39 | 79.6 | 9 | 512.54 | 523 | 68 |
| 2-1/2"×1-1/2" | 65×40 | 39 | 79.6 | 9 | 519.4 | 530 | 68 |
| 2-1/2"×2" | 65×50 | 39 | 79.6 | 9 | 446.88 | 456 | 68 |
| 3"×1/2" | 80×15 | 42 | 93 | 10 | 633.08 | 646 | 36 |
| 3"×3/4" | 80×20 | 42 | 93 | 10 | 632.1 | 645 | 36 |
| 3"×1" | 80×25 | 42 | 93 | 10 | 650.72 | 664 | 36 |
| 3"× 1-1/4" | 80×32 | 42 | 93 | 10 | 637.98 | 651 | 36 |
| 3"×1-1/2" | 80×40 | 42 | 93 | 10 | 694.82 | 709 | 36 |
| 3"×2" | 80×50 | 42 | 93 | 10 | 773.22 | 789 | 36 |
| 3"×2-1/2" | 80×65 | 42 | 93 | 10 | 556.64 | 568 | 36 |
| 4"×1/2" | 100×15 | 49 | 118.4 | 11 | 1070.16 | 1092 | 18 |
| 4"×3/4" | 100×20 | 49 | 118.4 | 11 | 1085.84 | 1108 | 18 |
| 4"×1" | 100×25 | 49 | 118.4 | 11 | 1078.98 | 1101 | 18 |
| 4"×1-1/4" | 100×32 | 49 | 118.4 | 11 | 1126.02 | 1149 | 18 |
| 4"×1-1/2" | 100×40 | 49 | 118.4 | 11 | 1097.6 | 1120 | 18 |
| 4"×2" | 100×50 | 49 | 118.4 | 11 | 1121.12 | 1144 | 18 |
| 4"×2-1/2" | 100×65 | 49 | 118.4 | 11 | 1350.44 | 1378 | 18 |
| 4"×3" | 100×80 | 49 | 118.4 | 11 | 1203.44 | 1228 | 18 |
| 6"×3" | 150×80 | 60 | 170.8 | 13 | - | - | - |
| 6"×4" | 150×100 | 60 | 170.8 | 13 | - | - | - |
Product advantage
Durability: Bushing boast exceptional durability, capable of withstanding high-pressure environments and harsh conditions, ensuring long-lasting performance.
Versatility: These fittings offer versatility by facilitating connections between pipes of different sizes, making them adaptable for various plumbing or industrial applications.
Reliable Connection: With their threaded design, malleable steel bushing fittings provide a secure and tight connection, minimizing the risk of leaks or failures in piping systems.
Ease of Installation: Their design allows for easy installation, simplifying the process of connecting pipes and fittings, thereby saving time and effort during assembly.
Corrosion Resistance: Malleable steel fittings are often coated or treated to resist corrosion, enhancing their lifespan and maintaining their functionality even in challenging environments prone to rust or degradation.
FAQ
Q: What are malleable steel bushing pipe fittings used for?
A: Malleable steel bushing fittings are utilized to connect pipes or fittings of different sizes within plumbing, industrial, or fluid conveyance systems, ensuring secure and leak-resistant connections.
Q: Are malleable steel bushing fittings suitable for high-pressure applications?
A: Yes, these fittings are crafted from durable malleable steel, making them capable of withstanding high-pressure environments commonly found in various industrial settings.
Q: Can Bushing be used for both water and gas applications?
A: Yes, these fittings are versatile and can be employed for both water and gas conveyance, offering reliability and security in different fluid transportation systems.
Q: How do I install malleable steel pipe fittings?
A: Installation involves threading the fittings onto the pipes securely. It's crucial to ensure proper sizing and a tight fit to prevent leaks. Professionals often use sealing compounds to enhance the connection's integrity.
Q: Are malleable steel fittings resistant to corrosion?
A: Typically, these fittings are coated or treated to resist corrosion, extending their lifespan and maintaining their functionality even in environments prone to rust or degradation. Regular maintenance can further enhance their longevity.
